| Kind | Outrigger Pads |
|---|---|
| Water Absorption | ＜0.01% |
| Tensile Strength | 81~130MPa |
| Density | 0.96-0.98g/cm3 |
| Abrasion | 80 (Steel=100) |
| Application | Heavy Machinery with Outriggers, Jack etc. |
| Surface | Flat or Patterned |
| Origin | China |

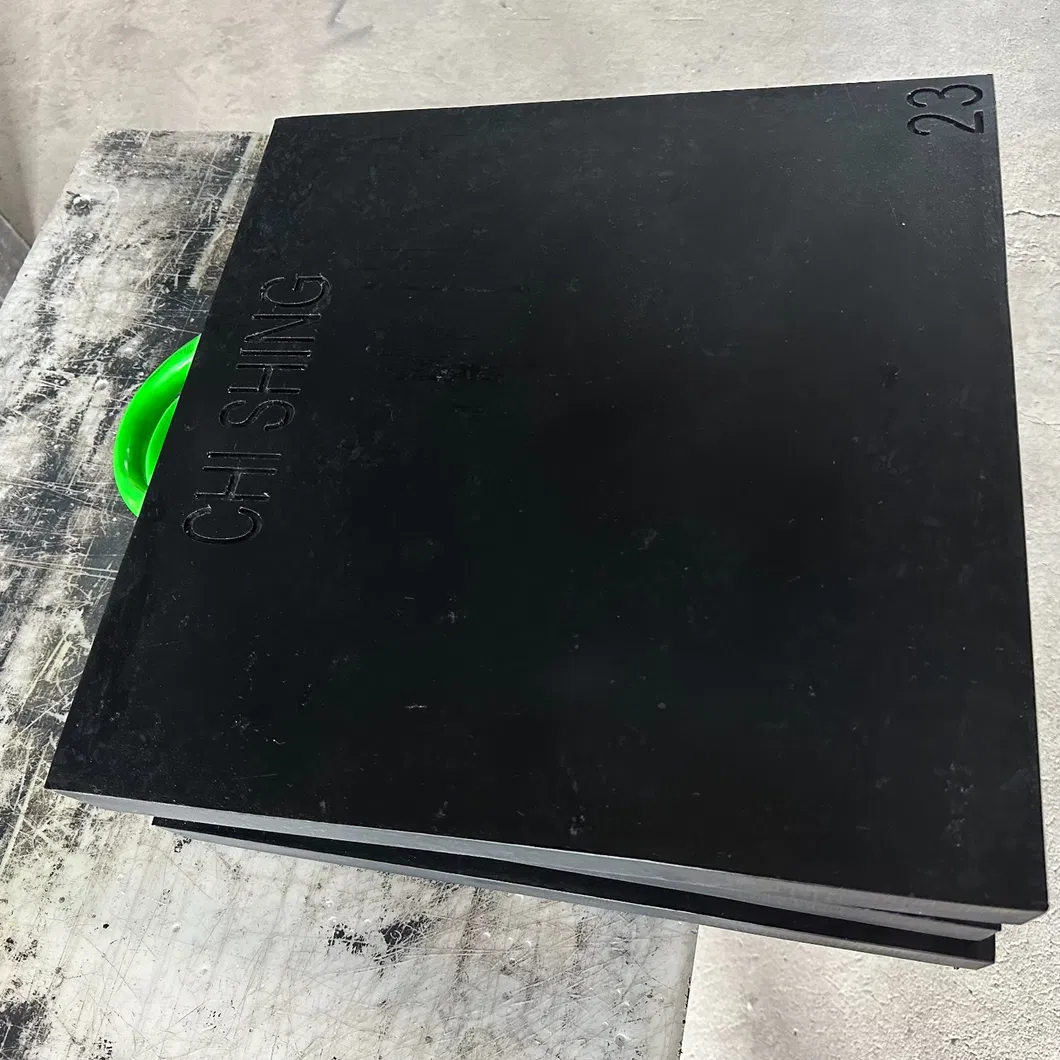

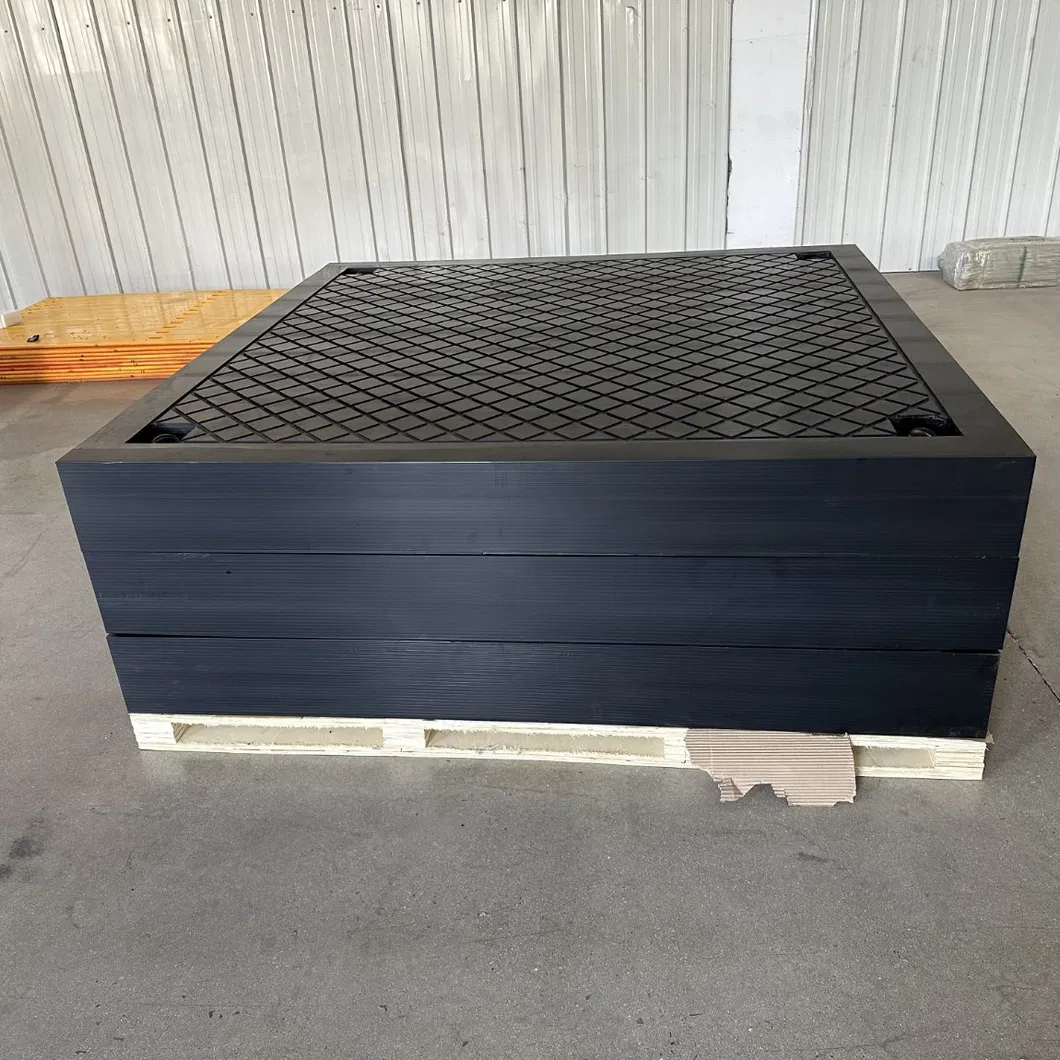

UHMWPE Outrigger Pad

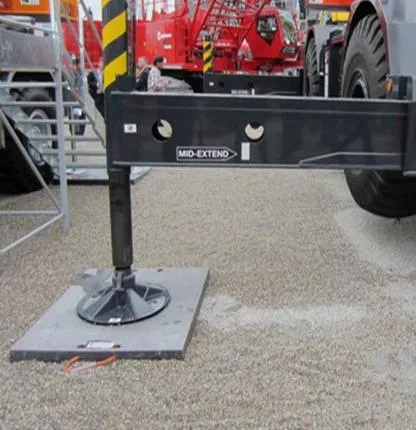

The outrigger pad can effectively distribute the weight of the construction machinery itself and the lifting weight to the area of the outrigger pad to ensure the safety of the ground working environment. Even in complex road conditions, it avoids severe accidents.
Exceptional wear resistance ensures a longer lifespan compared to traditional pads, resulting in significant cost savings over time.
Withstands heavy loads and rough handling without cracking or breaking, providing maximum reliability and safety on-site.
Properly textured designs provide excellent slip resistance, preventing equipment skidding even in challenging environments.

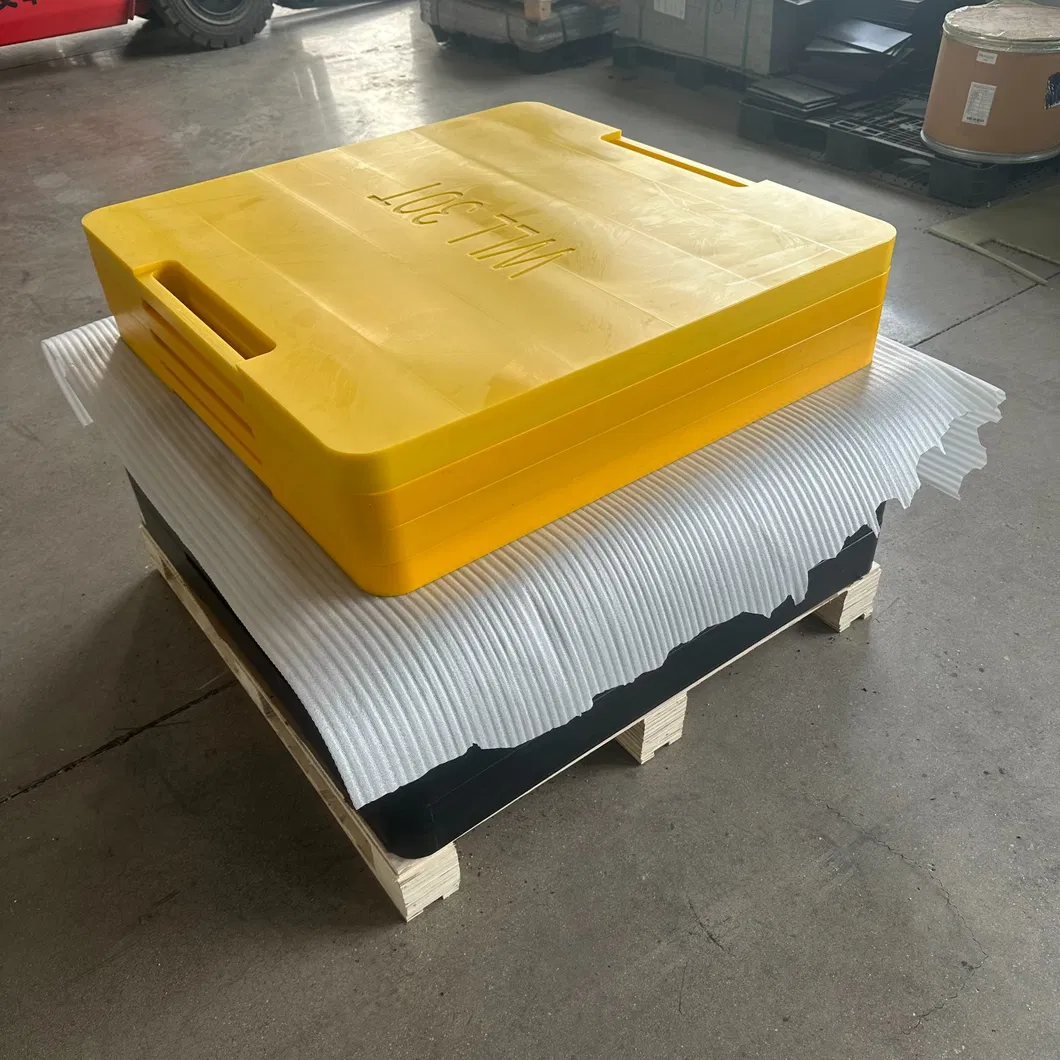

Lighter than metal or wood pads, making transport and setup faster and reducing labor costs.
Closed-cell material that does not absorb water or leach chemicals, making it eco-friendly and ideal for wet conditions.

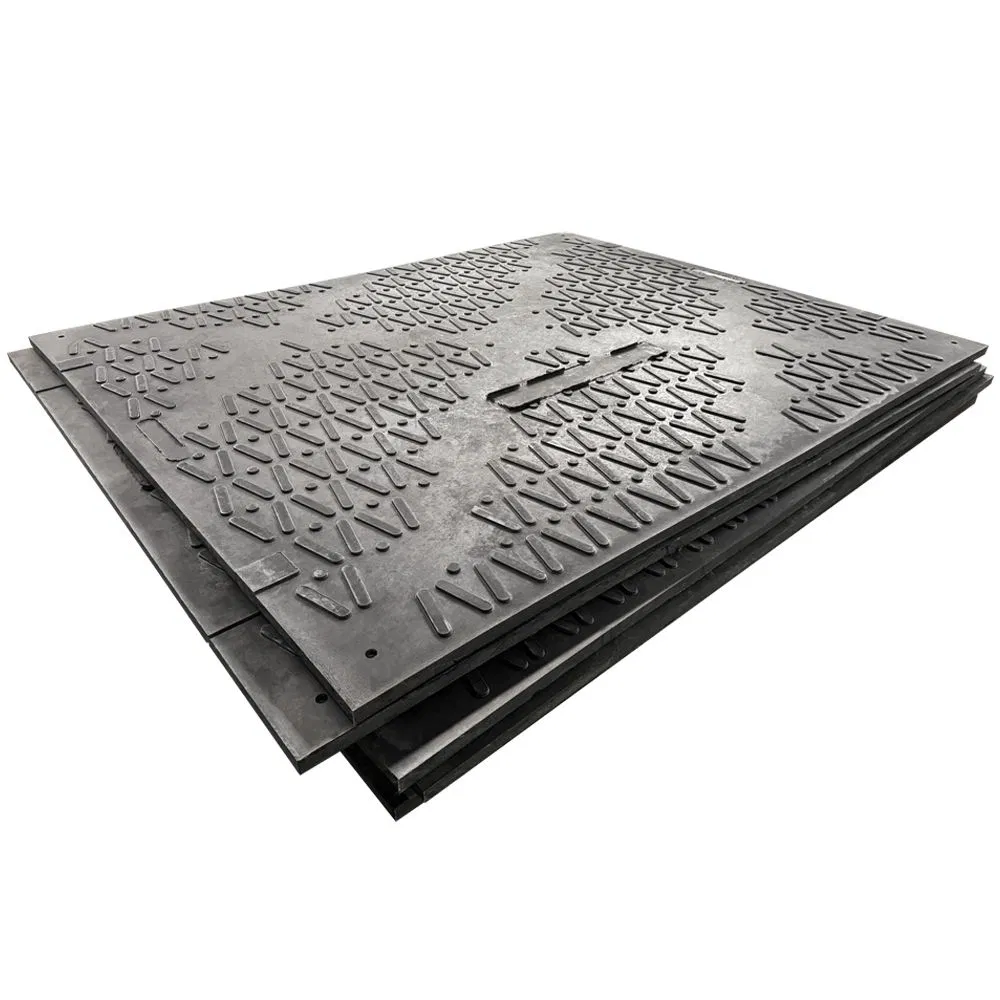

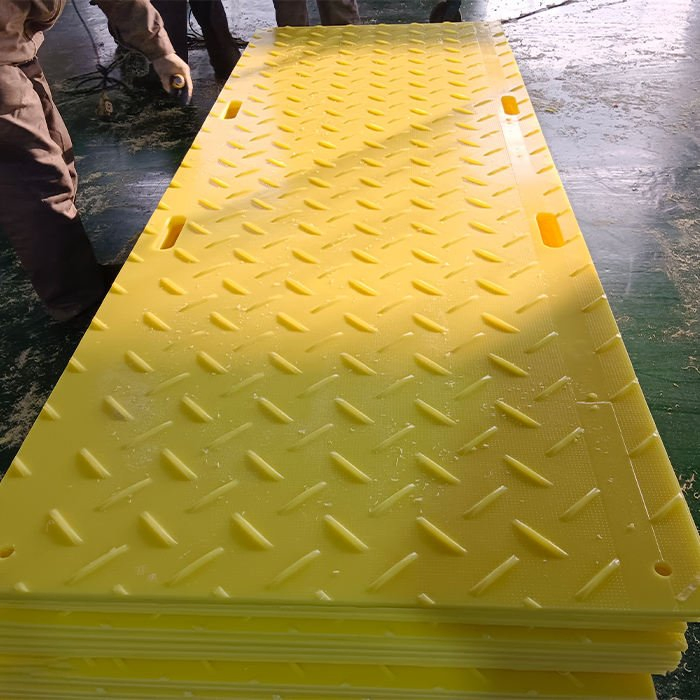

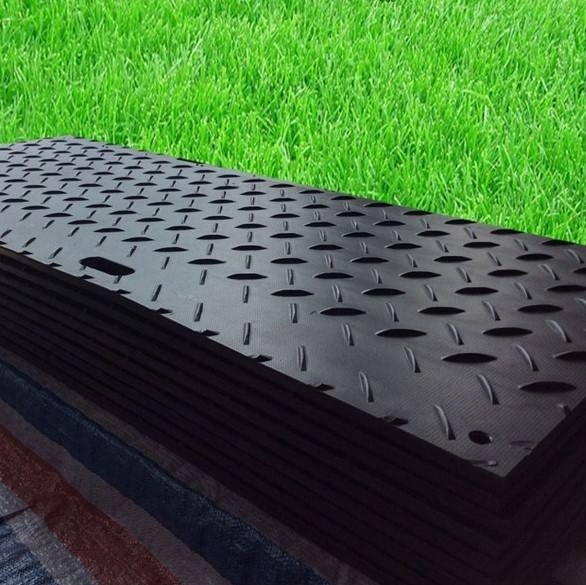

Primary Uses: Antishock pads, crane outseam stents, fire truck mats, utility truck pads, tree trimmer pads, concrete pumps, temporary road mats, and heavy equipment mud mats.
| Test Item | Test Method | Test Result | Unit |
|---|---|---|---|
| Density | GB/T1033-1966 | 0.96-0.98 | g/cm3 |
| Molding Shrinkage | ASTMD6474 | 1.0-1.5 | % |
| Tensile Strength | GB/T1040-1992 | 45.3 | Mpa |
| Rockwell Hardness | IS0868 | 57 | R |
| Water Absorption | - | <0.01 | % |
| Specification (mm) | Thickness (mm) | Load Capacity |
|---|---|---|
| 400*400 | 30, 40, 50, 60 | 6-13 ton |
| 600*600 | 40, 50, 60, 70 | 18-33 ton |
| 1000*1000 | 50, 60, 70, 80 | 65-104 ton |
| 1500*1500 | 100, 110, 120, 150 | 225-338 ton |
| 2000*2000 | 100, 120, 140, 150 | 280-420 ton |
